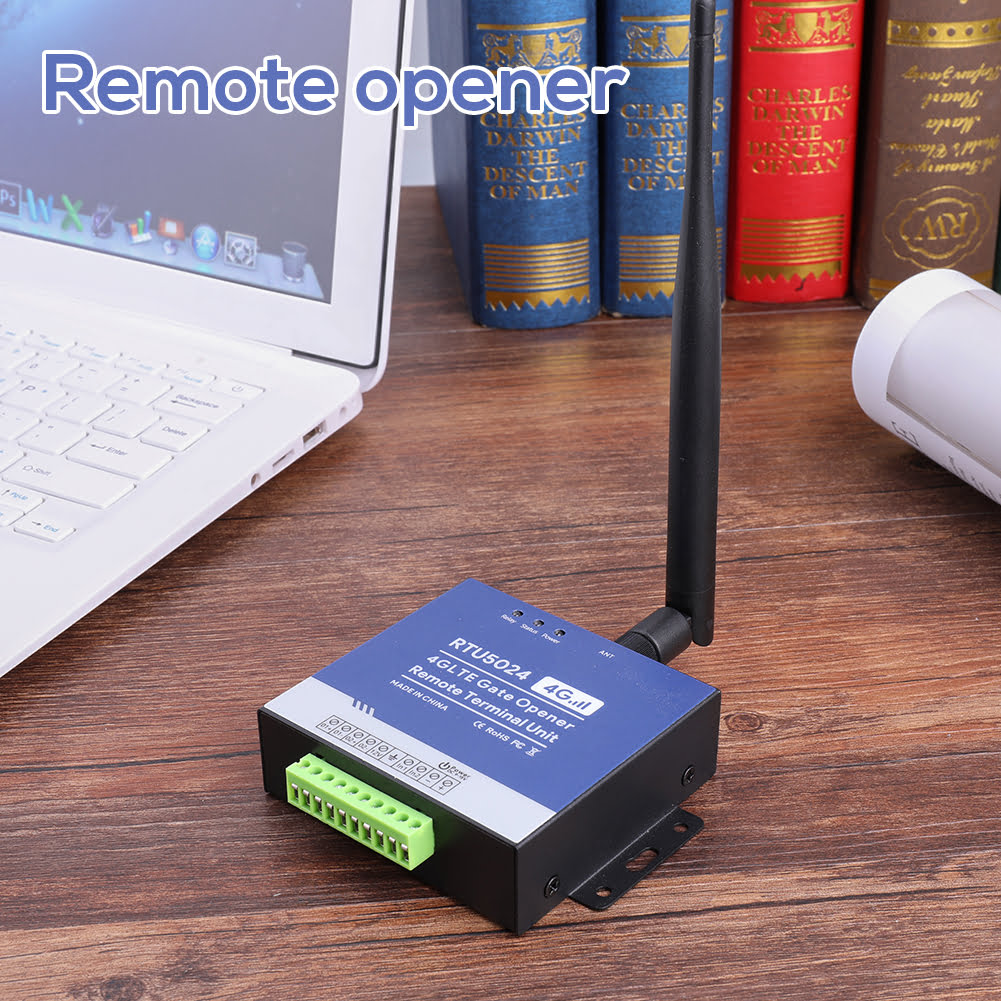

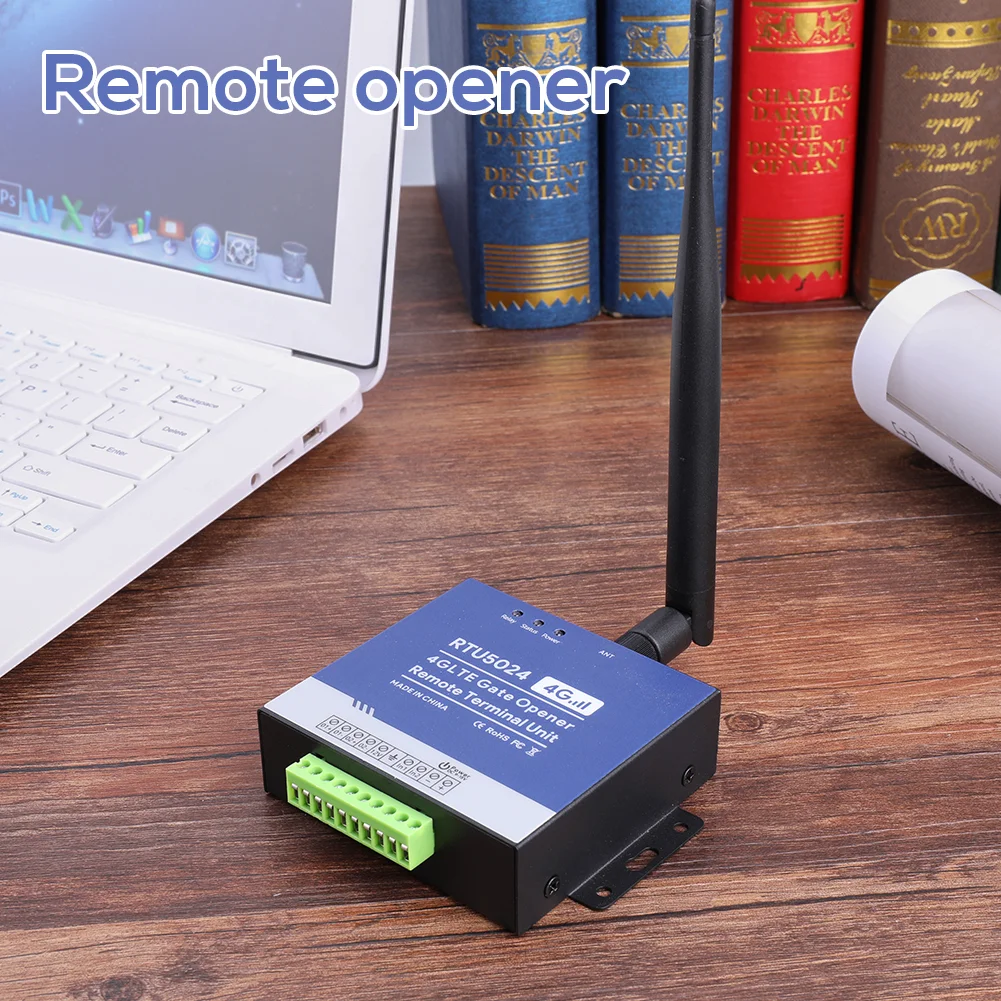

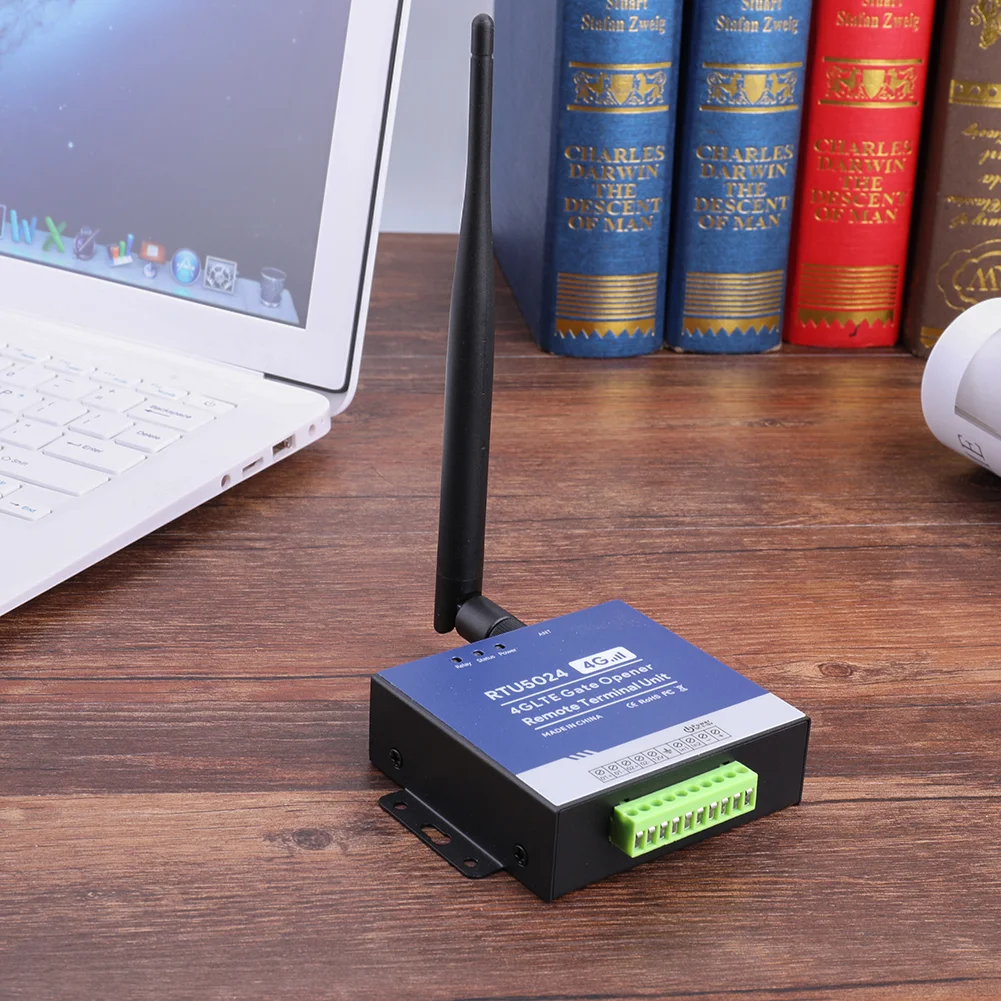

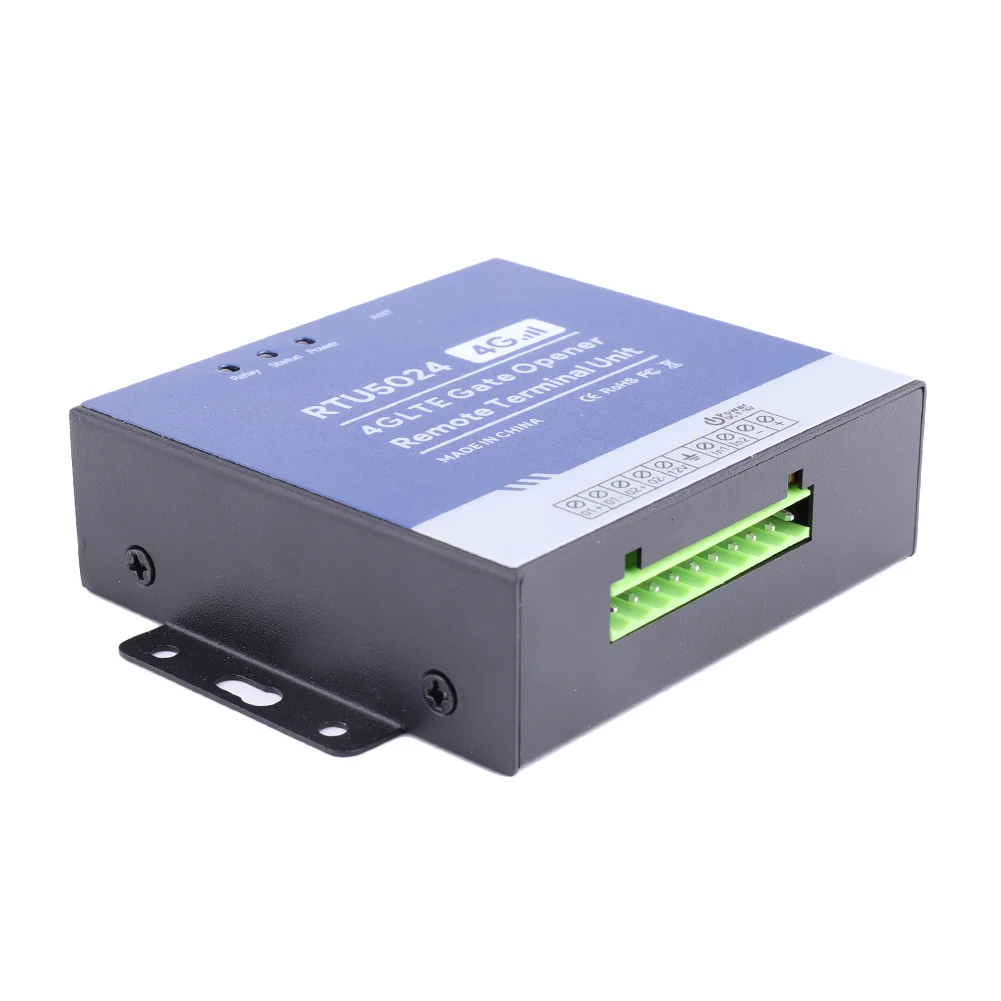

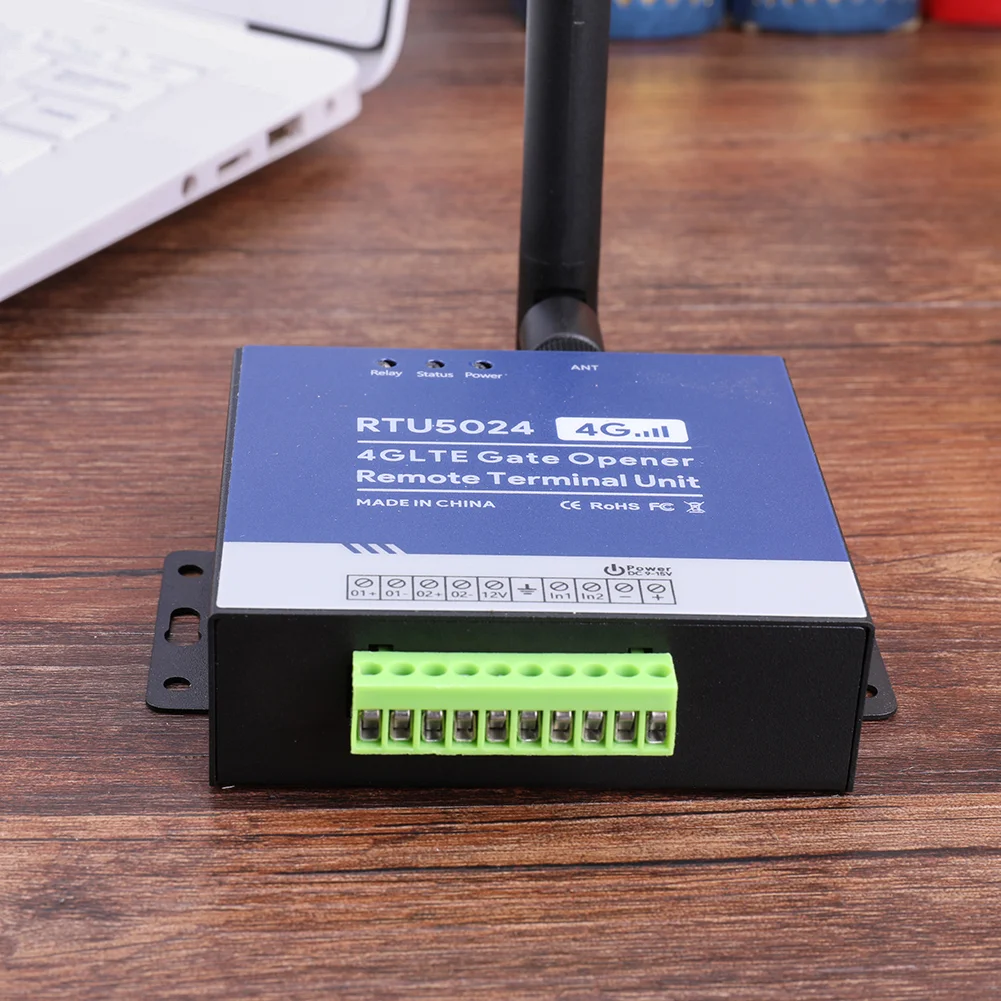

Enerna IoTech 4G LTE GSM gate automation door entrance relay switch RTU5024 with more powerful function. It support up to 999 authorized telephone numbers for SMS free call and Android/iOS app remote controlling. And it have two inputs which can connect alarm sensors for security protection.
1. 4G LTE GSM gate automation door entrance relay switch is a very simple equipment, which can be used to authorize access control, control access control, remote equipment switching, parking system, etc. In fact, the device can be used where your system, machine and equipment need to be turned on or off, and can make calls from your mobile phone for free and protect your assets.
2. Simply dial the authorized user number to open or close the fence, door or machine. Without the call fee, the GSM access controller rejects the call authorization number and then performs the open / close operation.
3. In addition, the equipment has two digital inputs. When any input is triggered, it will start the alarm or turn on the indicator. At the same time, the equipment will send SMS alarm and notify the owner immediately. This is useful if you need a low-cost solution to protect your assets.
1. No telephone charges. The device rejects the phone from the authorized number, and then turns on / off on the first “ring tone”;
2. Opening the door is no longer traditional. Shaking the door adds more fun.
3. Multiple applications. (doors, door posts, guardrails, garage doors, shutters and access doors or machines);
4. Security – use caller ID for identification, and unknown callers will be ignored;

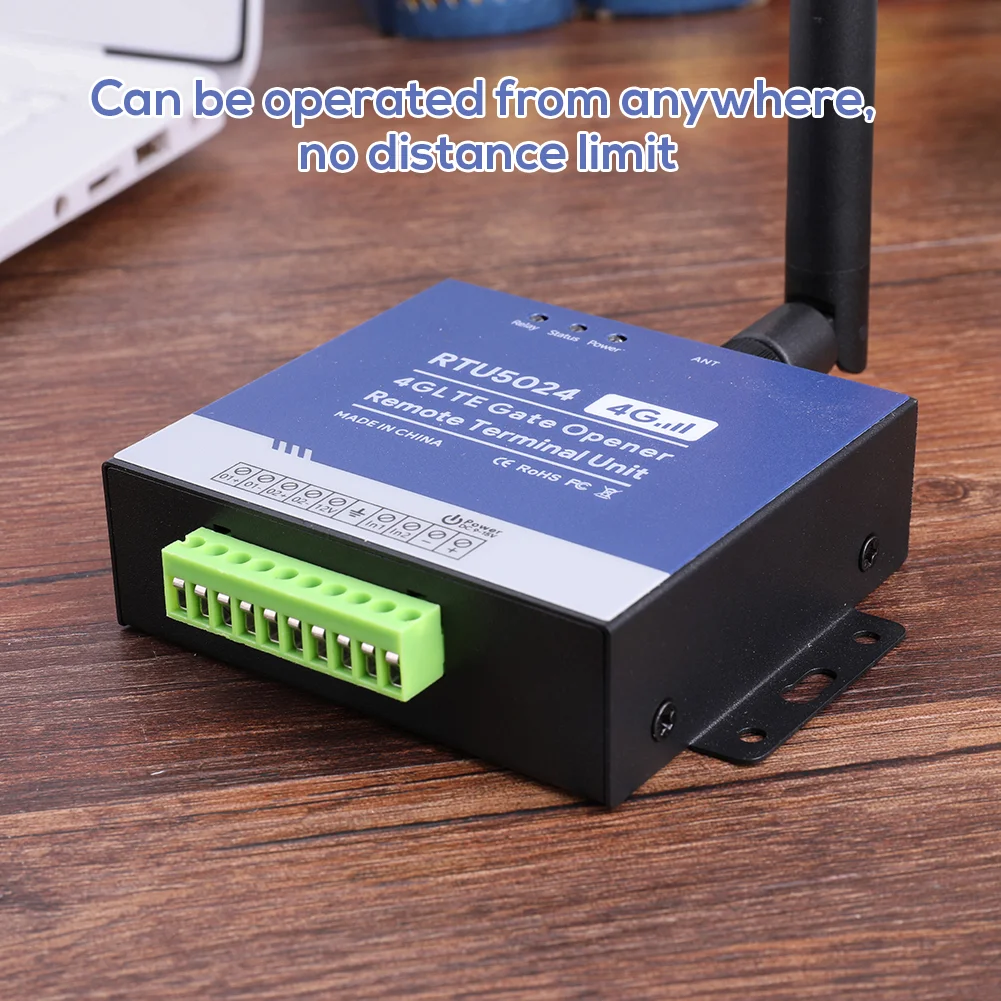

5. It can be operated from any place without distance limit;
6. Add or delete users through SMS text command;
7. There is no need to provide remote control for different users;
8. Up to 999 authorized telephone numbers can be configured;
9. Two digital input door sensors, motion sensors or other sensors to protect your doors and windows. When any one is triggered, it will send SMS reminder information and start the alarm immediately;
10. Output with relay class 6A / 240VAC, used to connect the switch of door or machine;
11. The relay operation will return the SMS confirmation to the owner. This function is edited by the user;
12. Based on GSM network, it is widely used.
Rated voltage: 12V DC 1A
Operating temperature: – 10 ℃ ~ 60 ℃
Storage temperature: – 20 ℃ ~ 60 ℃
Relative humidity: 10-90%, no condensation
Operating frequency: 900 / 1800 MHz
Communication protocol: GSM phase 2 / 2 (including data service)
Wired area: 2
Relevant voltage of output relay: 6A / 240V AC
Product weight: 188g
Package weight: 250g
Product size: 80 * 76 * 26mm/3.1x3x1in
Package size: 190 * 110 * 30MM/7.5×4,3×1.2in
The Enerna IoTech 4G LTE GSM gate automation door entrance relay switch manual and app can be downloaded by scanning the code.

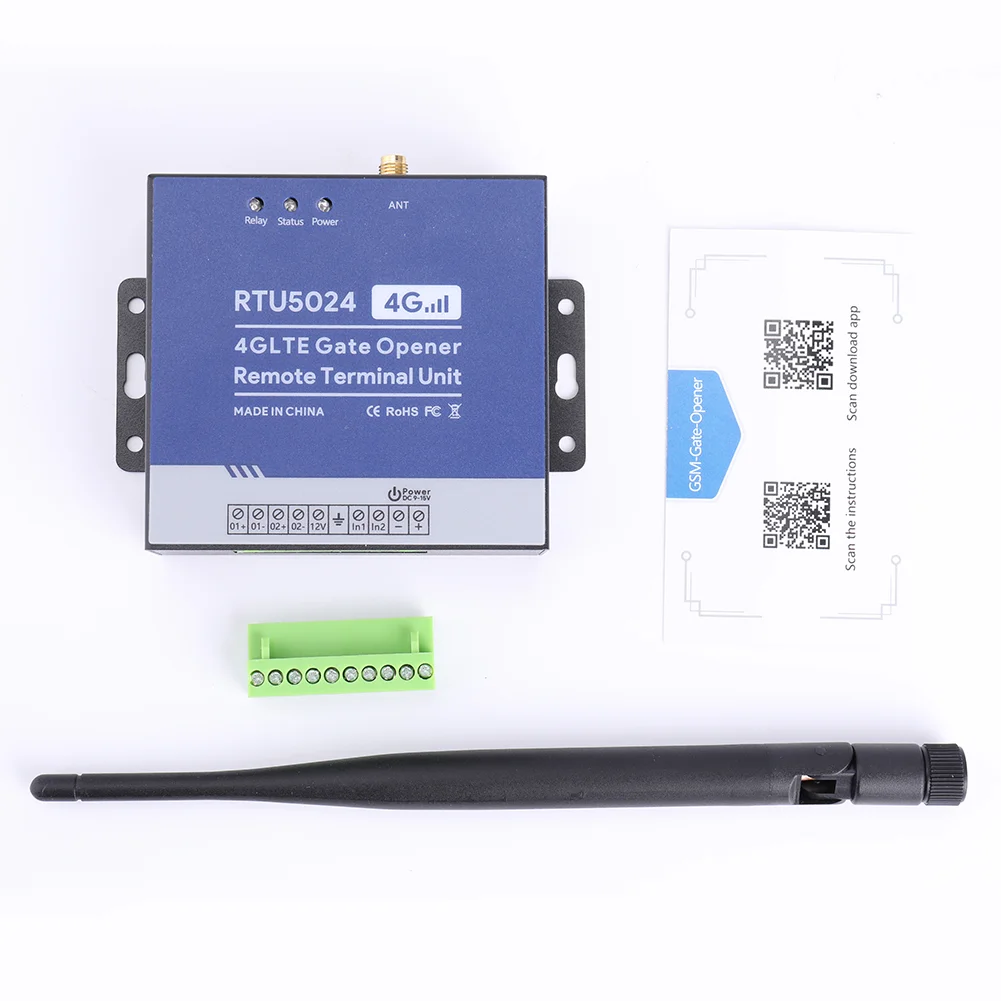

1 x Enerna IoTech 4G LTE GSM gate automation door entrance relay switch RTU5024
1 x GSM Antenna
1 x Manual

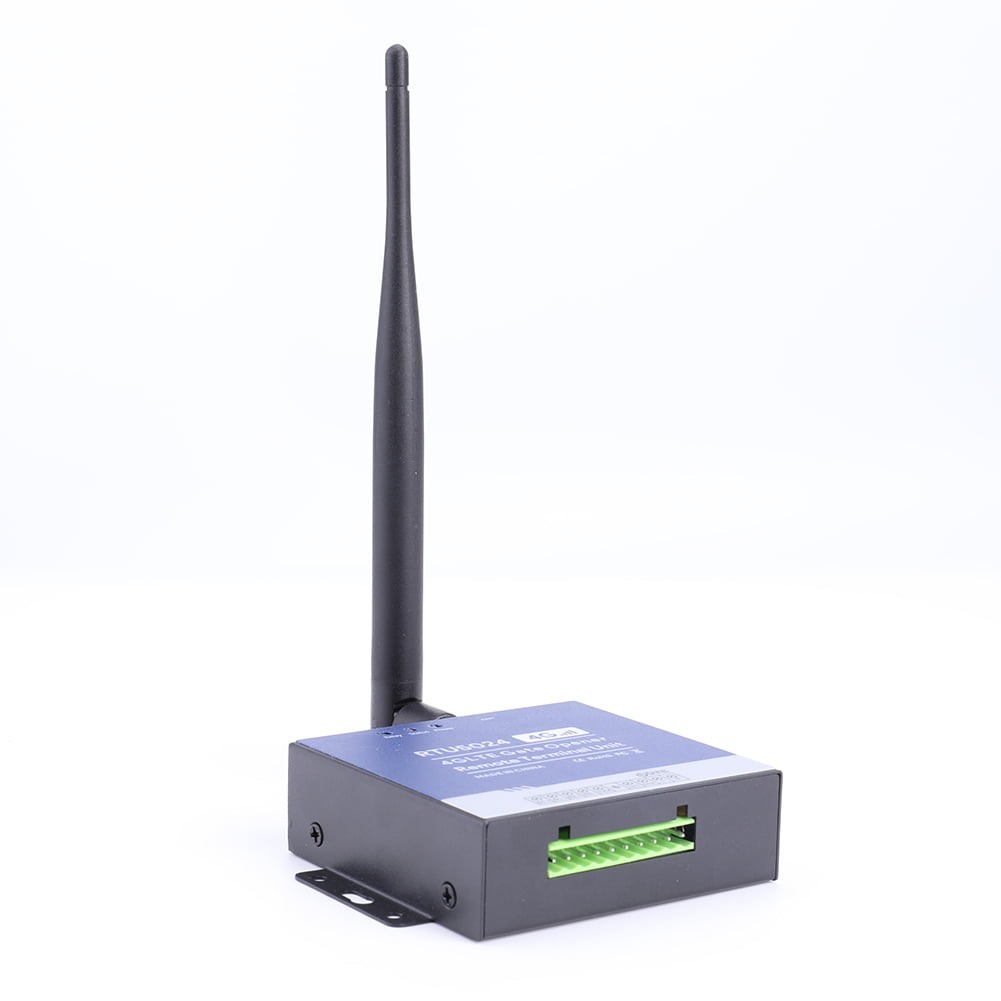

Enerna IoTech 4G GSM Wireless SMS Call Gate Opener Relay Switch RTU5024

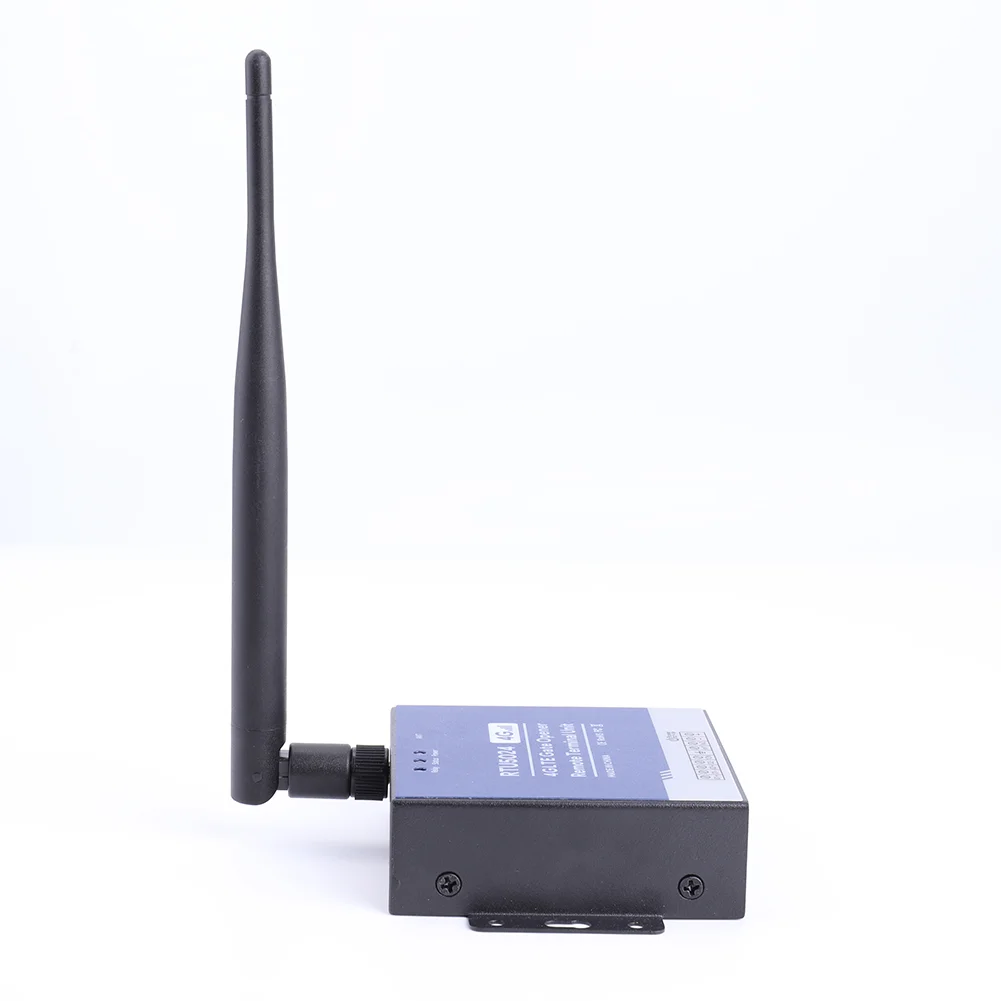

Enerna IoTech 4G LTE Free Call Access Control Remote Control Gate Door Opener

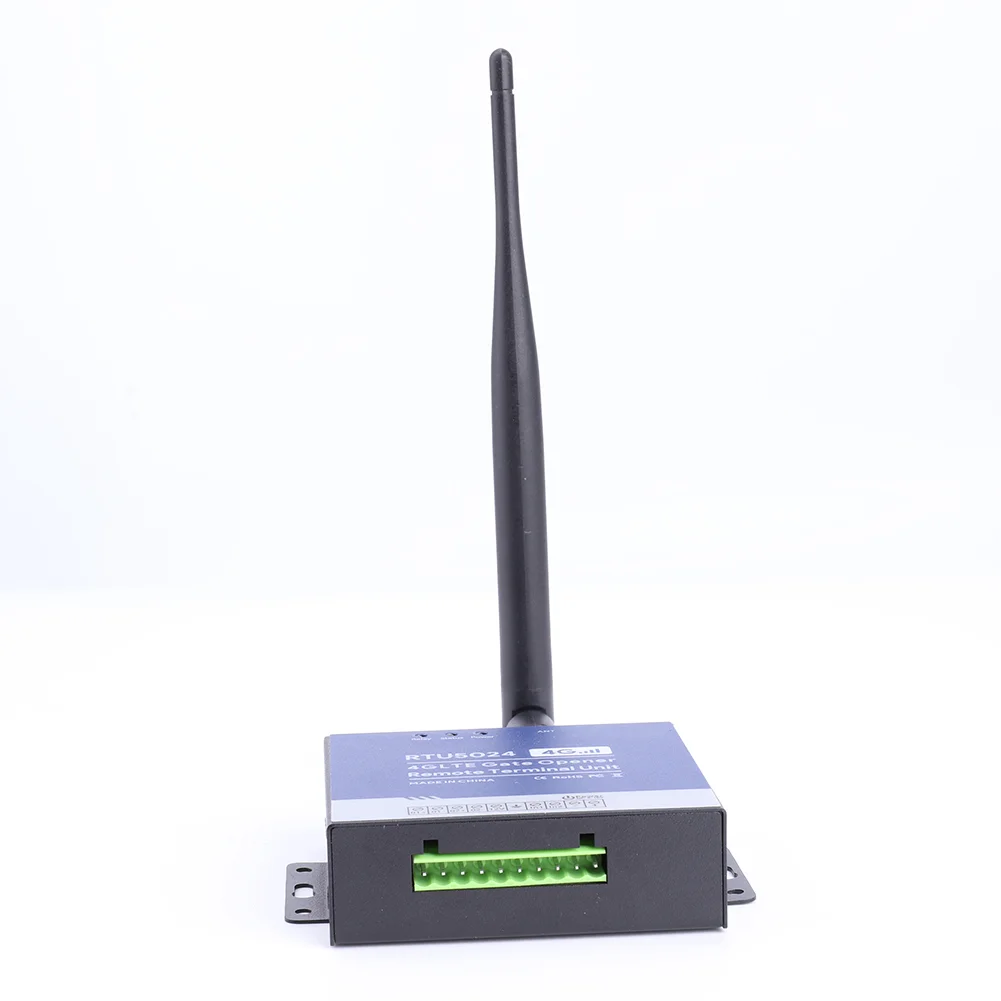

Enerna IoTech 4G Wireless Access Control Door Opener Safety Controller

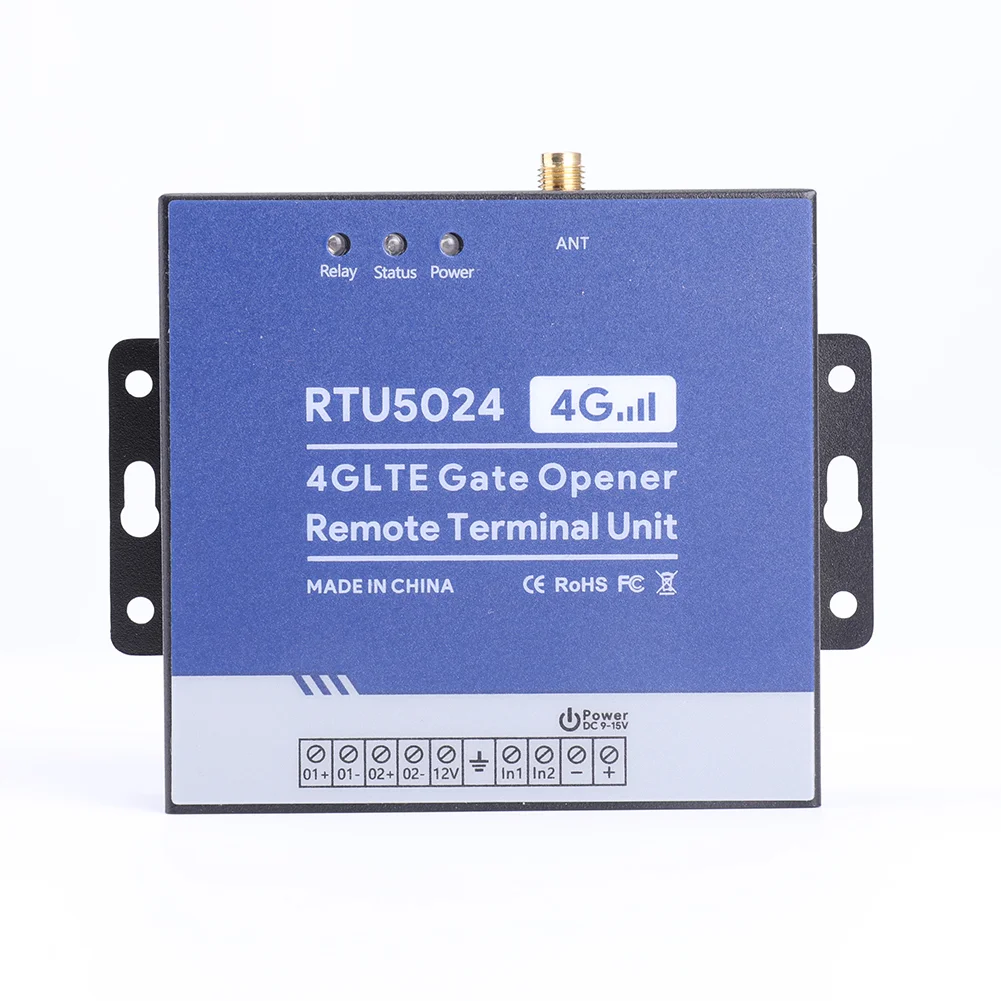

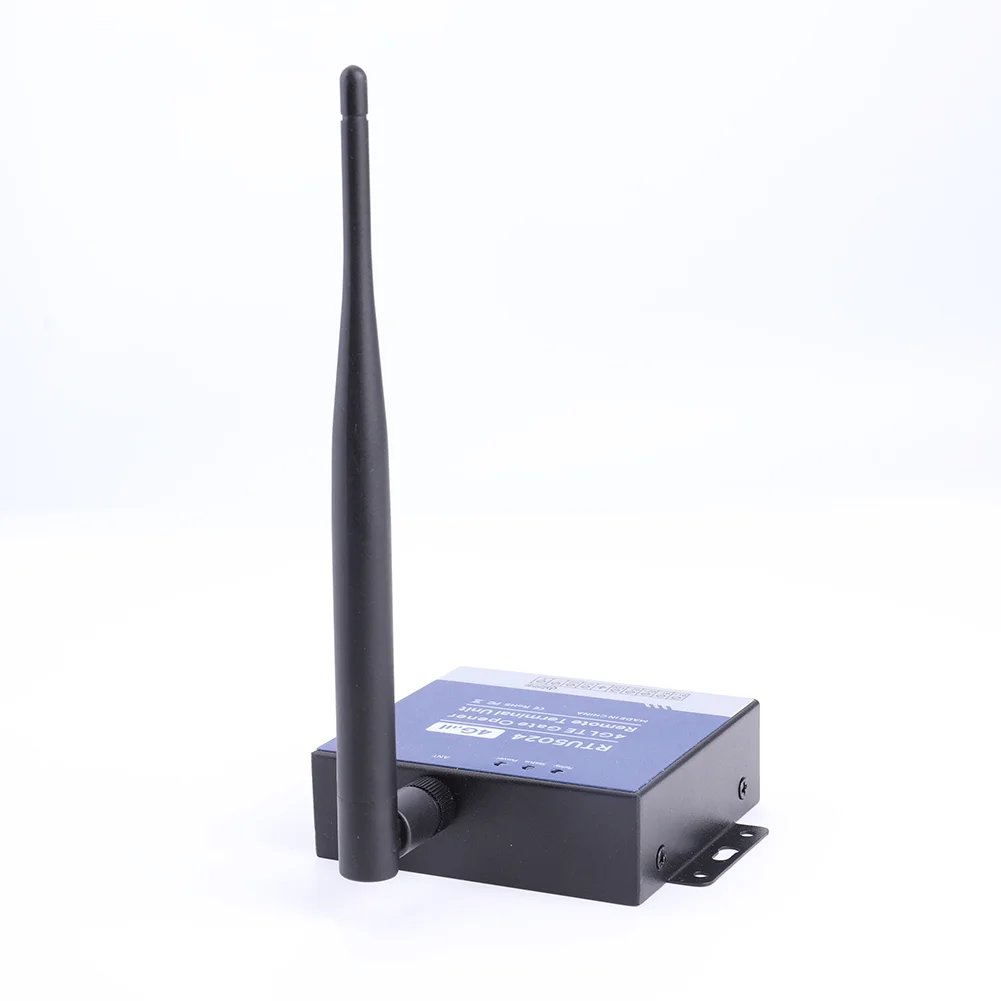

Enerna IoTech Cellular Gate Controller Door Switch

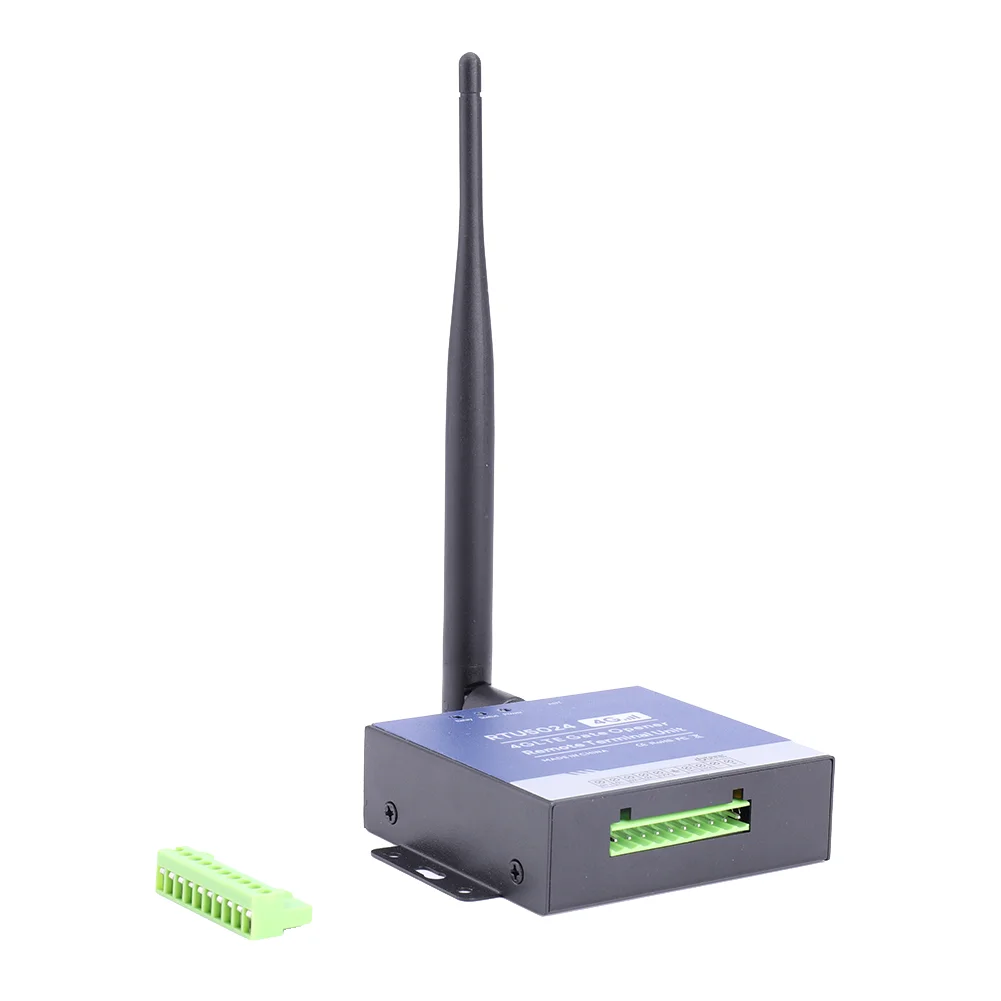

Enerna IoTech GSM 4G LTE SMS Free Call Gate Opener Relay Switch
